DBS Chimney Mount Kit For Satellite Dish J Pipe Attachment

Highlights
4 inch Stand-Off
"Y" Type Configuration
Stainless Steel Straps
12 /18 /24  foot Strap Length
Hardware Included
Price$14.99
Manufacturer Code6001
Seel Straps:
Qty
AvailabilityUsually ships in 24 Hrs
ShippingCan ship anywhere

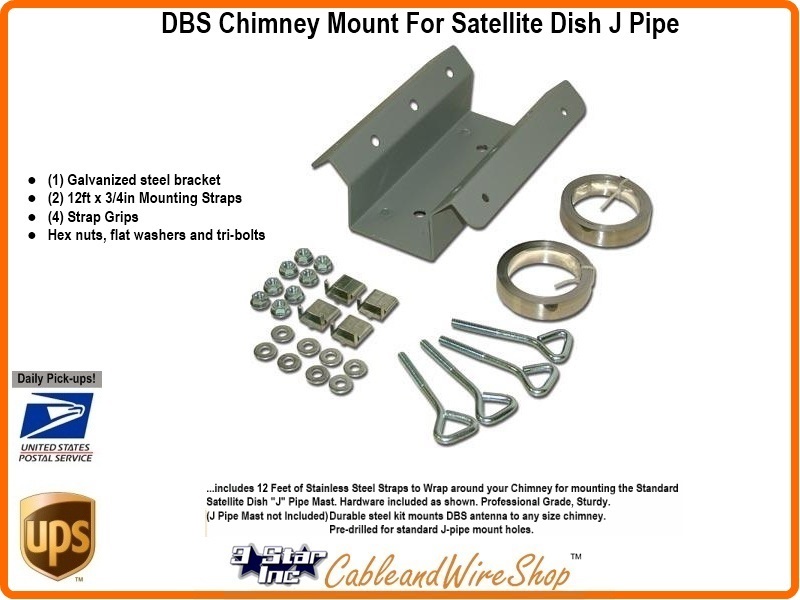

SKY 6001 DBS Chimney Mount Kit For Satellite Dish J Pipe Attachment
includes 12 Feet of Stainless Steel Straps to Wrap around your Chimney for mounting the Standard Satellite Dish "J" Pipe Mast. Hardware included as shown. Professional Grade, Sturdy.(J Pipe Mast not Included)



Kit Includes :

(1) Galvanized steel bracket
(2) 12ft x 3/4in Mounting Straps

(2) 18ft x 3/4in Mounting Straps ( Optional )

(2) 24ft x 3/4in Mounting Straps ( Optional )
 (4) Strap Grips
Hex nuts, flat washers and tri-bolts





Note

WARNING: The installer must verify the installation meets all applicable

codes and requirements. 3 Star Inc  will not be held liable for the

improper use or installation of its products.



Fire  Bricks used in Chimneys can be quite strong, yet any Brick may crumble Slightly on the edges under pressure, so glue some small rounded metal angle stock cut about 2 inches long, placed at each corner to facilitate installation. Avoid Strapping over Mortar Joints.
EZ5-16 Galvanized Antenna Mast 5 foot by 1.25" OD 16 AWG - $9.95
EZ 5-16 5 Foot Galvanized
Made in the USA!Made in the USA!
This is a 5 Foot (60") by 1.25" OD 16 AWG Galvanized Antenna Mast (Mount Not Included)...

read more...
EZ5-16S Swaged Antenna Mast 5 Foot by 1.25" OD 16 AWG - $10.95
EZ 5-16S 5 Foot 16 AWG Swaged Antenna Mast Section
Made in the USA!Made in the USA!
This 5 Foot (60") by 1.25" OD 16 AWG swaged end Antenna Mast tube is galvanized for weather and used to extend any 1-1/4 inch 16 gauge antenna masts by fitting the swaged end of this mast into the open end of the other mast tube, thereby extending the existing mast an additional 5 feet. Manufacturers recommend that masts heights of 10 feet and higher be guyed...

read more...
Satellite TV Antenna Combination Mast 5 foot by 1.66" and 2" OD - $12.95
3 Star 5994 1.66 and 2 Inch O.D. Combination Satellite and Off-Air TV Antenna Mast
(56-3/4" Length) by 1.66" and 2.00 " O.D. 16 AWG Galvanized Antenna Mast (Mount Not Included)...

read more...
Product isn't rated yet. Write a review.

Chimney Mounts

Chimney mounts are used more frequently than other types of mounts, but they often are not the best option. Although they are relatively easy to install, the smoke and gases from a chimney can shorten the life of the antenna and significantly impair its performance.  A chimney installation is practical only if the chimney is sturdy and vertical.  Never mount an antenna on a deteriorated chimney.  During moderate to high winds, an unguyed mast taller than 10 feet can exert enough leverage to break off an unstable chimney.  If you choose a chimney mount, use enough mast to place the antenna above most of the smoke and gases.  However, to avoid overstressing the chimney, do not mount the antenna more than 10 feet above the top of the chimney.  If the height of the antenna must exceed 10 feet to receive satisfactory signals, the mast must be properly guyed.   Securing the chimney-mounted antenna and minimizing the stress on the chimney requires the mounting straps to be properly spaced.  The top strap should be placed as high up on the chimney as possible.  If the chimney has a crown or projecting cap, place the top strap directly under it.  The bottom strap should be placed 4 feet below the top strap.  If the chimney isn’t long enough to permit this, place the bottom strap as far down on the chimney as possible.  If the mast must be 10 feet above the chimney top, don’t use a chimney mount unless you can space the straps at least 30 inches apart.  For masts less than 10 feet above the chimney top, the straps should be spaced no less than 24 inches apart. Assemble one end of each strap to one eyebolt using a strap clamp (See Spec sheet).  Attach the eyebolt/strap assemblies to each bracket (See Spec sheet).  Insert an eyebolt into the other end of each bracket.  The nuts on each eyebolt should only be threaded about ½” onto the eyebolts.  Run the straps around the chimney.  Be sure the straps are level, with no kinks or twists.  The easiest way to level straps is to line them up along the nearest course of bricks.  Straps should be centered on the bricks – not over the mortar joint.  Feed the free end of each strap through an eyebolt on the other end of each bracket.  Pull each strap tight, line it up so that it is level, and then tighten it just enough to hold it in place.  Before the straps are tightened completely, fasten the mast to the mounting bracket.  (It is assumed that the antenna has already been clamped securely to the mast, and one end of the transmission line has been connected to the antenna terminals.)  Align the mast so that it is vertical.  Then completely tighten the mounting straps.  Next, orient the antenna.  Finally, tighten the clamps that hold the mast to the mounting.  Be sure the clamps are tight enough to prevent the mast from being rotated by the wind load on the antenna.

Chimney Mounts
Chimney Antenna Mounts

Chimney mounts are used more frequently than other types of mounts, but they often are not the best option. Although they are relatively easy to install, the smoke and gases from a chimney can shorten the life of the antenna and significantly impair its performance.  A chimney installation is practical only if the chimney is sturdy and vertical.  Never mount an antenna on a deteriorated chimney.  During moderate to high winds, an unguyed mast taller than 10 feet can exert enough leverage to break off an unstable chimney.  If you choose a chimney mount, use enough mast to place the antenna above most of the smoke and gases.  However, to avoid overstressing the chimney, do not mount the antenna more than 10 feet above the top of the chimney.  If the height of the antenna must exceed 10 feet to receive satisfactory signals, the mast must be properly guyed.   Securing the chimney-mounted antenna and minimizing the stress on the chimney requires the mounting straps to be properly spaced.  The top strap should be placed as high up on the chimney as possible.  If the chimney has a crown or projecting cap, place the top strap directly under it.  The bottom strap should be placed 4 feet below the top strap.  If the chimney isn’t long enough to permit this, place the bottom strap as far down on the chimney as possible.  If the mast must be 10 feet above the chimney top, don’t use a chimney mount unless you can space the straps at least 30 inches apart.  For masts less than 10 feet above the chimney top, the straps should be spaced no less than 24 inches apart. Assemble one end of each strap to one eyebolt using a strap clamp (See Spec sheet).  Attach the eyebolt/strap assemblies to each bracket (See Spec sheet).  Insert an eyebolt into the other end of each bracket.  The nuts on each eyebolt should only be threaded about ½” onto the eyebolts.  Run the straps around the chimney.  Be sure the straps are level, with no kinks or twists.  The easiest way to level straps is to line them up along the nearest course of bricks.  Straps should be centered on the bricks – not over the mortar joint.  Feed the free end of each strap through an eyebolt on the other end of each bracket.  Pull each strap tight, line it up so that it is level, and then tighten it just enough to hold it in place.  Before the straps are tightened completely, fasten the mast to the mounting bracket.  (It is assumed that the antenna has already been clamped securely to the mast, and one end of the transmission line has been connected to the antenna terminals.)  Align the mast so that it is vertical.  Then completely tighten the mounting straps.  Next, orient the antenna.  Finally, tighten the clamps that hold the mast to the mounting.  Be sure the clamps are tight enough to prevent the mast from being rotated by the wind load on the antenna.
