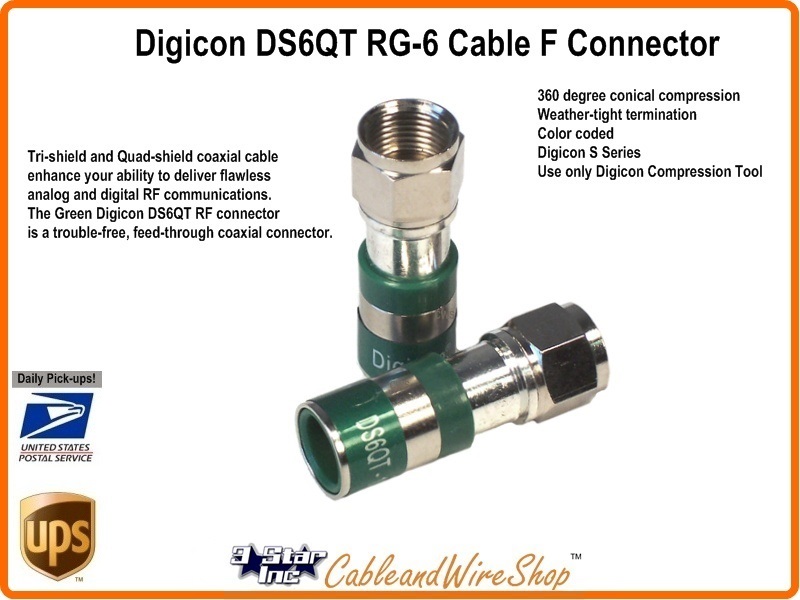

Digicon DS6QT F-Connectors for RG6
tri-shield and quad-shield coaxial cable enhance your ability to deliver flawless analog and digital RF communications. The Green Digicon DS6QT RF connector is a trouble-free, feed-through coaxial connector. The free-spinning, tin-plated brass body with a nickel-plated nut provides superior corrosion resistance and durability. A 360 degree conical compression completely seals the F connector around the cable jacket for increased electrical and mechanical performance, secure weather-tight termination and enhanced pull-out strength. Machined brass sealing rings located in the final compression taper create a permanent water barrier at the F-connector base. A lubricated internal O-ring prevents moisture migration at the mandrel nut. A large ferrule contact surface ensures a proper RF and digital interface. The connector nut is 50% larger, 20% deeper with 30% more threads than typical RF connectors to allow a more firm grip and to provide a secure weather-tight connection at the port interface. For professional results, use only the proper Digicon compression tool to install Digicon F-connectors. Use Compression Tool LCCT-1, Part Number 213859 or LCCT-SS59/11, Part Number 716841 (see Spec. Sheet)...
Availability: Ships out in 24 hours!
Shipping: Can ship anywhere!
Weight: 0.022 lb
|
|
|
|
A Selection of All Equipment and Cable Connectors including; F-Type , RCA, BNC, Audio,Screw-ons and Transitions / Male and Female/ Adapters between them all. Some connectors are available that affix directly to the cable, others are really transitions from an "F" ,RCA or other such common base connector. Crimp Style Connectors are pretty much interchangeable with their relation to Ferrule and Crimp Ring size and Appropriate Corresponding "Crimping" Tool. Connectors that require a "Press" fit Longitudinally, are most often Proprietary in their Relationship to their Corresponding "Crimping" Tool. Most Manufacturers will reference a Particular Model number to this Regard. Please do not assume that just because it Looks "Just Like the Other One", that it is... Please Verify!
|
|
|
|
