Holland BNC-C324 RG-6 Cable BNC Connector

Printer Friendly Tell a Friend

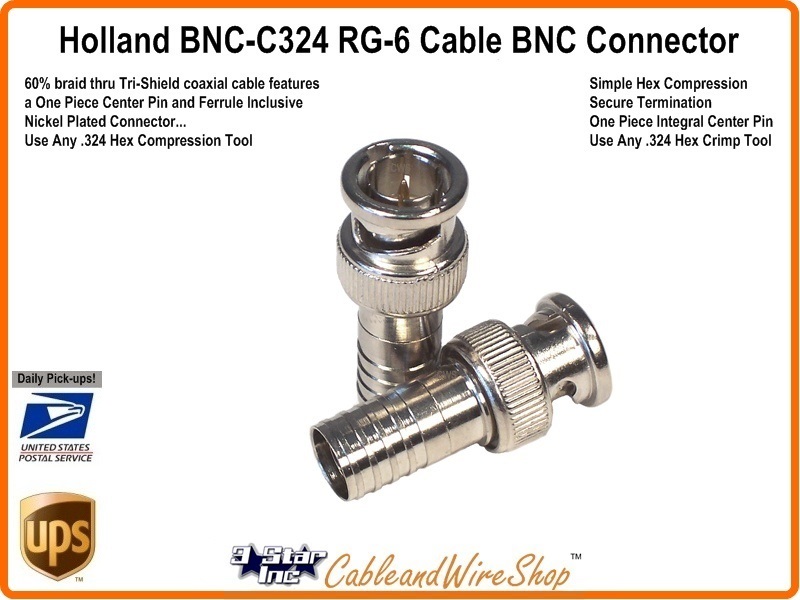

Holland BNC-C324 RG-6 Cable BNC Connector
HOLLAND
Price: $1.29
Qty 1-50 51-100 101+
Price $1.29 $1.27 $1.25
Mfr. Code: BNC-C324

Qty:

Highlights:
Simple Hex Compression
Secure Termination
One Piece Integral Center Pin
Use Any .324 Hex Crimp Tool

Description
Holland BNC-C324 RG6 Coaxial Cable to BNC Connector
(1 each/unit) For use with 60% thru Tri-Shield coaxial cable. Turn Two connectors into One. Go Direct from Cable to BNC. This Economical Hex Crimp Connector features a One Piece Center Pin and Ferrule Inclusive Nickel Plated Housing. Prep with 1/4-1/4 Center conductor and Braid length.
Use HX-596Q (.324) Hex Crimper Tool

spec. sheet



Spec. Sheet


Get Adobe Reader




Bright Nickel Finish makes this Connector a plus in Custom made Home Theater and Head-end cable wiring that looks like you spent a fortune. This also means that you can choose a specific colored RG6 cable sheath, connectorize it to length, adding to the Custom Finished look.

Availability: Usually ships in 24 Hrs
Shipping: Can ship anywhere
RG-6 Cable Connector
RG-6 Coaxial Cable "F" Connector After WWII, 75 Ohm cable has been used as the Transmission Line of Choice for TV, Cable TV and Broadband Signals, Distribution Systems large and small, simply because of its plentiful abundance. As the Industry progressed, It seems there were 10 times as many Connectors as there was Coaxial Cable types, each requiring a Proprietary style of Tool to Fashion the connection with. Most Folks We know stick to using the Connector style that they were introduced to, and the Manufacturer, Make and Model that they have invested in via the Compression or Crimp Tool they own. Whereas before, when each manufactured cable type introduced was ;paired up with a specific Model Connector from one or several different Manufacturers, many have now settled on providing Connectors whose Braid, Shield and Jacket coverage range is broader in scope, encompassing the designed ability to fit many variations of a particular sized cable. Becoming Universal certainly has its advantages... And RG6 is now the minimum size recommended for any HDTV Satellite, Off-Air DTV or Satellite TV Install. So please consider a transitional investment towards the Universal RG6 Compression Connectors and Universal Compression Tools we offer, as the sourcing of those out-dated Connectors becomes more difficult!
