PPC EX6XL Universal RG-6 Cable F Connector |
|
|
|

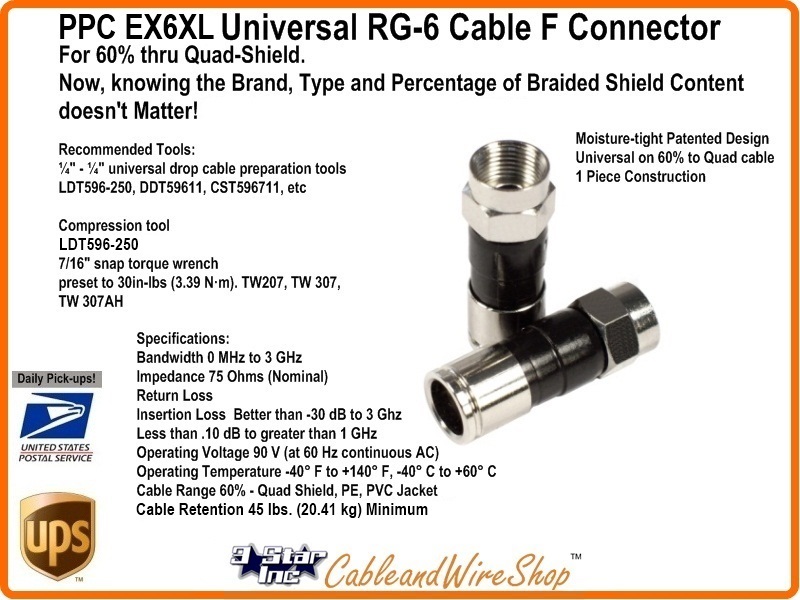

PPC EX6XL RG-6 Universal F Connector for RG6 Cable
DISH Network Approved!
(1 each/unit) Slightly Longer Universal Compression Connector for Use on All RG6 Coaxial Cables with 60%, Tri and Quad-Shield. Satellite Program Suppliers require their Sub-Contractors to use this connector for Warranty and Maintainence agreements. Now, knowing the Brand, Jacket Type and Percentage of Braided Shield Content doesn't Matter!
Uses the LNS5000 or LNS5082 Universal Compression Tools.
Specifications:
| Bandwidth |
0 MHz to 3 GHz |
| Impedance |
75 Ohms (Nominal) |
Return Loss
Insertion Loss |
Better than -30 dB to 3 Ghz
Less than .10 dB to greater than 1 GHz |
| Operating Voltage |
90 V (at 60 Hz continuous AC) |
| Operating Temperature |
-40° F to +140° F, -40° C to +60° C |
| Cable Range |
60% - Quad Shield, PE, PVC Jacket |
| Cable Retention |
45 lbs. (20.41 kg) Minimum |
PPC Recommended Tools:
| Description |
PPC P/N |
| ¼" - ¼" universal cable preparation tool |
LDT596-250, DDT59611 |
| Compression tool |
LDT596-250 |
7/16" snap torque wrench
preset to 30in-lbs (3.39 N·m). |
TW207, TW 307,
TW 307AH |
Install Sheet
John Mezzaluna and Associates made a Name for themselves in the Cable TV Industry, here's another reason why:
• One connector for 6 Series SCTE specification drop cables including 60% braid, Tri-shield and Quad shield.
• To reduce assembly time and simplify installation, the plastic compression sleeve is incorporated into the connector body.
• True 360° compression onto cable ensures superior RF shielding performance.
• Installation requires one-step 1/4” - 1/4” cable preparation.
• Quad-sealed system prevents moisture migration.
• Incorporates an iridescent chromate finish plus UV resistant plastic to provide a reliable, environmentally sealed product.
• Cable retention exceeds 40 lb. minimum as specified by the SCTE.
Availability:
Usually ships in 24 Hrs
Shipping:
Can ship anywhere
|
|
|
|
|
|
|
After WWII, 75 Ohm cable has been used as the Transmission Line of Choice for TV, Cable TV and Broadband Signals, Distribution Systems large and small, simply because of its plentiful abundance. As the Industry progressed, It seems there were 10 times as many Connectors as there was Coaxial Cable types, each requiring a Proprietary style of Tool to Fashion the connection with. Most Folks We know stick to using the Connector style that they were introduced to, and the Manufacturer, Make and Model that they have invested in via the Compression or Crimp Tool they own. Whereas before, when each manufactured cable type introduced was ;paired up with a specific Model Connector from one or several different Manufacturers, many have now settled on providing Connectors whose Braid, Shield and Jacket coverage range is broader in scope, encompassing the designed ability to fit many variations of a particular sized cable. Becoming Universal certainly has its advantages... And RG6 is now the minimum size recommended for any HDTV Satellite, Off-Air DTV or Satellite TV Install. So please consider a transitional investment towards the Universal RG6 Compression Connectors and Universal Compression Tools we offer, as the sourcing of those out-dated Connectors becomes more difficult!
|
|
|
|
|
|
|
|
|
