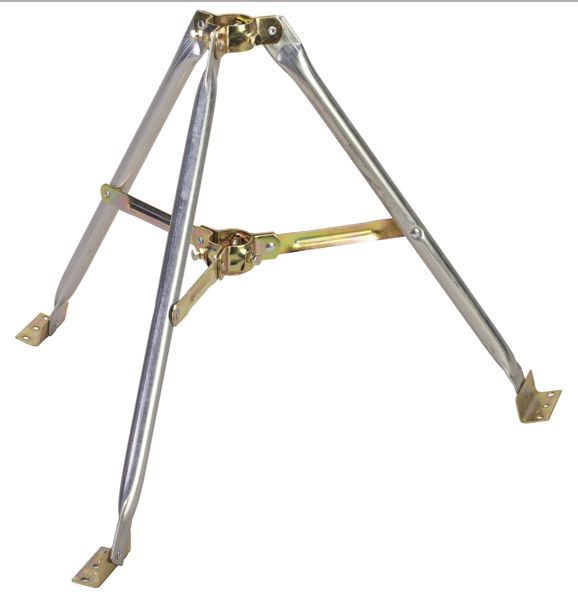

EZ 22-2A 2 Foot Roof Mount Tripod for Antenna Mast
Holds masts up to 1.66" diameter. Made of 1" OD-18 gauge galvanized tubing. Spread 26 1/2" Mast supported by 6 bolts; plus supporting cup. Mast not included Made in America.
Materials: 1” OD - 18 gauge galvanized tubing
Height: 2 ft
No. of Bolts to Hold Mast: 6
Accepts Mast Up To: Up to 1.66 in
Weight: 5.3 lb

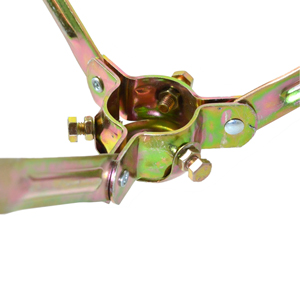

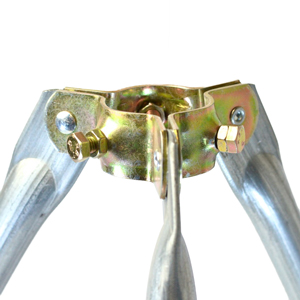

Images showing the 6 bolt setup.
Typical rafter spacings are 16 inches center to center and pre-built trusses are 24 inches center to center. Heavy Duty 18 Gauge Galvanized Steel 2 ft. Antenna Tripod can Permanently mount an antenna or satellite dish on the peak of a roof, or almost anywhere!
Tripod mounts offer fast, easy installation for one person. The legs adjust to any rafter spacing. Available in a range of sizes, tripods are shipped completely assembled with no loose parts so they can be quickly installed at your location.
Better reception, neat appearance with high quality self-supporting antenna mounts that eliminate signal distortion caused by inferior materials
Unmatched strength, durability and corrosion protection with heavy gauge,high quality, tubular steel uprights featuring the Sun-Coat process. This special triple-coating of zinc, chromate and polymer gives a smooth, shiny finish.
