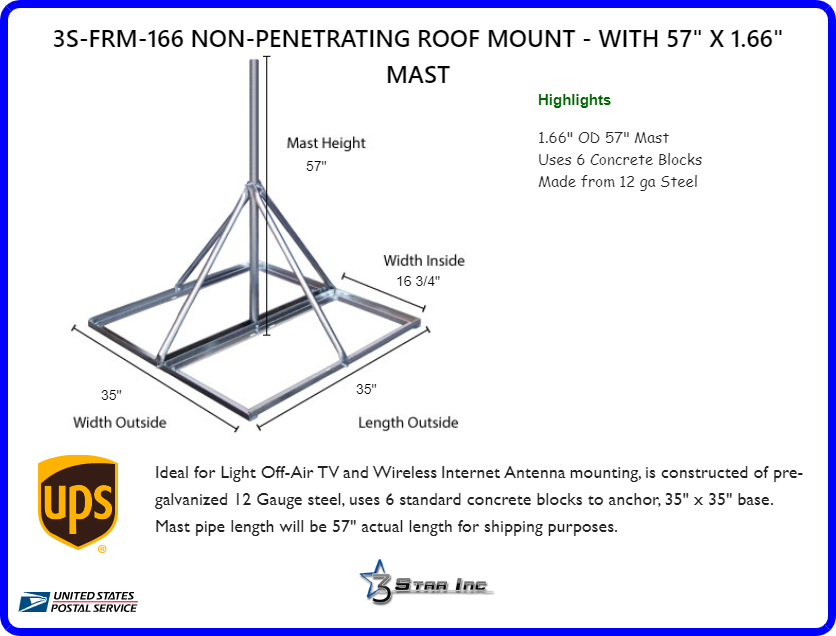

3S-FRM-166 Non-Penetrating Roof Mount - With 57" x 1.66" Mast

Price$106.00
Manufacturer Code3S-FRM-166
Qty
AvailabilityUsually ships in 24 Hrs
ShippingCan ship Canada

Highlights

1.66" OD 57" Mast

6 Concrete Blocks
12 ga Steel

Made in the
USA!Made in USA

Bulk Quantities Available Here!

        3S-FRM-166 Non-Penetrating Roof Mount -w- 57" x 1.66"  OD Mast


Made in the
USA!Made in the USA!
Ideal for Light Off-Air TV and Wireless Internet Antenna mounting, is constructed of pre-galvanized 12 ga. steel, uses 6 standard concrete blocks to anchor, 35" x 35" base. Mast pipe length will be 57" actual length for shipping purposes.


For light antenna loads needing 10 feet in total height,
the Optional 1.66" x 57" Swaged Pipe extension kit includes:

(1) 3S 5-166S Swaged Pipe
(1) 3S 60A-50' Steel Guy Wire
(1) 3S 43-A Guy Ring
(8) 1/8" CCF Guy Clamps




Height and Antenna Loading capability are dependent upon ballast weight... You need to Consult an Engineer to determine the Load Bearing Capability of the roof that you are entertaining such an Installation. It is Important to choose a Mount and Mounting Location with a Picture of the Finished Installation in Mind. Be Sure to First select a location that lends itself to applying a Load without Compromising the Integrity of the Material you affix to. Most Decorative Finishes most often do not have the Strength to Hold a Weight or Pressure without fail. Further, Think about what's underneath the exterior. Is it stronger, or will it yield to Pressure over time also? Weather Proof the Installation to Maintain the Integrity of your Home. Next consider the Location over a Lifetime of Adjustments, does it lend itself to modifications in Height or Direction? Larger Antennas increase the surface area presented to air movement, Hence, Wind-load does increase. As the length of the mast increases from Its last attached point on the structure, the torque applied in cantilever also increases with Weight and Wind-Load, requiring a more substantive attachment and Load-Bearing material. Keep the Distance Minimal from the Antenna to the TV's and Equipment you feed, as to minimize loss and the need for Amplification.
