5/8TBE&J Turnbuckle for ROHN Tower 5/8 x 12 inch Eye to Jaw

Price$19.95
Manufacturer Code5/8X12TBE&J
Qty
AvailabilityUsually ships in 24 Hrs
ShippingCan ship anywhere

Highlights
Heavy Duty
3500 lbs Working Load Limit
17,500 lbs. ultimate Strength

Bulk Quantities Available Here!

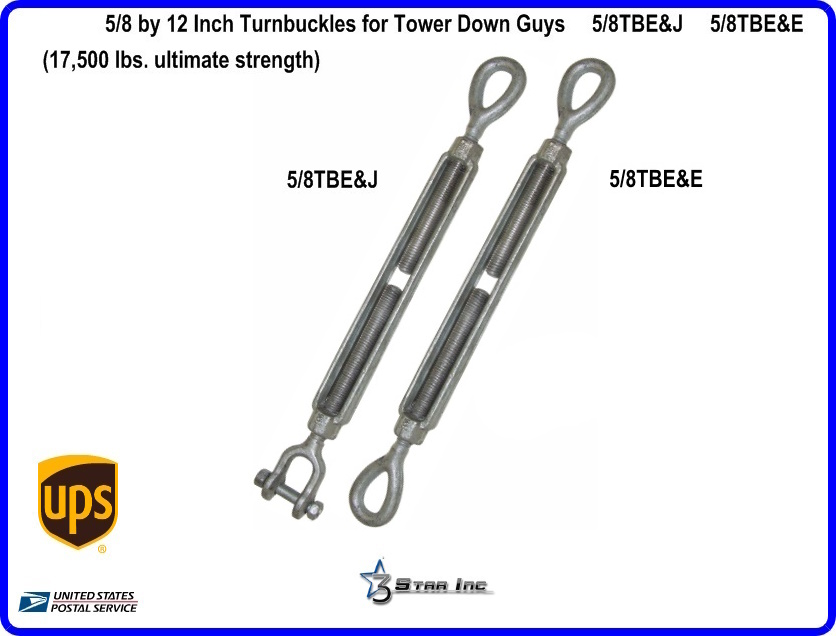

ROHN 5/8TBE&J 5/8" x 12" Eye to Jaw Turnbuckle
Federal Spec FF-T-791B Type 1 Form 1; Forged, Hot Dip Glavanized, Open Body, Working Load Limit: 3500 lbs., Ultimate Strength: 17500 lbs.

spec. sheet


Spec. Sheet


Get Adobe Reader




Typical Use: when attaching and tensioning ROHN Tower Down Guy terminations (1/4" Bare Strand via Cable Clamps and 5/16THH, 1/4" Strand via Pre-formed deadend and 3/8THH, 5/16" Strand via Pre-formed deadend and 7/16THH or 5/16" Bare Strand via Cable Clamps and 3/8THH, 3/8" Strand via Pre-formed deadend and 1/2THH or 3/8" Bare Strand via Cable Clamps and 7/16THH) to Closed Eye GAR30 or Integral Equalizer Plate Anchors (like GAC3455TOP, GAC5655TOP or GAC5755TOP). 17,500 lbs. Ultimate Strength. Eye to Jaw Turnbuckles typically attach the Tower Down Guy Strand (via a Big Grip Pre-Formed Dead-End and a Heavy Open Thimble) on one end to the Down Guy Equalizing Plate or Closed Single Eye Anchor (the ones that Holes as the attachment Method, ie; R-GAR30 and R-GAC3455) on the other end. Consult ROHN Catalog Links at Footer Section below for ROHN 25G 45G 55G 65G Tower Guy wire Details for Various Wind Loads.
Compare to ROHN R-5/8TBE&J 5/8 inch Eye to Jaw Turnbuckle!
Rate this product.
Product isn't rated yet. Write a review.

Tower Guy Wire Tension Guide

The recommended initial tension in guy wires is 10% of their ultimate tensile strength. There are two different grades of steel used for good guy line (clothes line does not count), HS (high strength) and EHS (extra high strength). The Rohn manual gives the following info on 3/16 and 1/4 in cable.
