ASKA 3-Way Horz. Splitter 5-1000 MHz. -W- Ground

Price$2.60
Manufacturer CodeTGS-31G
Stock Level: 0
AvailabilityCall to Order
ShippingCan ship anywhere

Highlights

    Specifications

Bandwidth  5-1000MHz

Insertion      -6dB max.

Isolation      -25dB min

Return Loss -20dB min

Epoxy of Rear cover

130dB RFI shield.

Bulk Quantities Available Here!

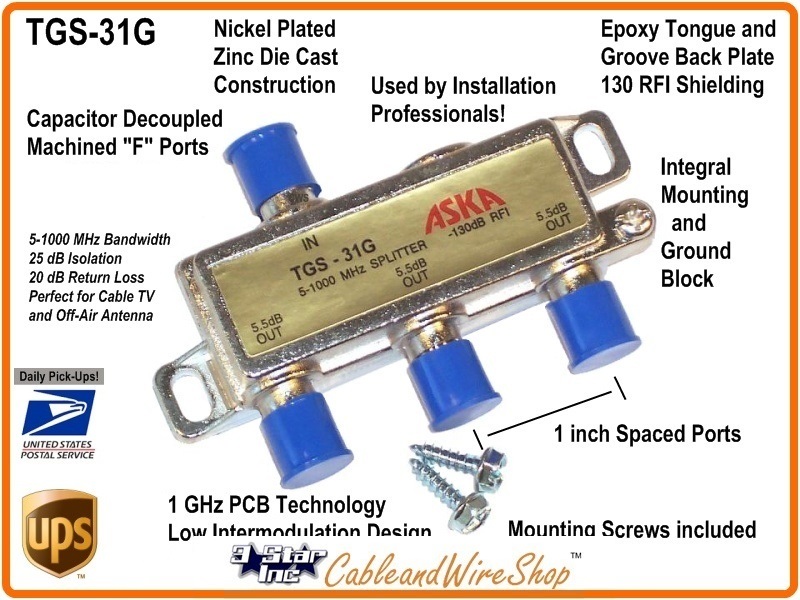

ASKA TGS-31G 3-Way 1 GHz Coaxial Cable TV Antenna Signal Splitter
All ports No Power passing design with blocking capacitors providing excellent intermodulation performance for low distortion interactive operation such as a Cable Modem. Tongue & Groove housing design provides high RFI Shielding for 130dB . The Nickel plated zinc die-cast housing for perfect corrosion protection and grounding. High precision machine threaded F-ports with 360 degree base for full seating of sealing sleeve. F-ports with machine threaded spaced 1inch center to center to accommodate security sleeve and tool. Printed circuit board ensures consistent RF performance and high port to port isolation. Applications vary from headend combining to typical drop installations. This splitter series should be used where increased bandwidth is being designed into the systems. Three Equal output Ports of (-5.5 db, -6 db max.) for length independant applications...


This is a favorite amongst Cable TV and Satellite System Installers. Its Nickel Plated Housing is Epoxy Sealed from the Environment with a Tarnish Free Finish designed to Resist Corrosion due to Weather. It will pass 1 GigaHertz worth of Forward and Return signals; making it perfect for Splitting Cable TV with High-Speed Internet and Pay per View DVR Box Connection Signals. When making RG-6 or RG-11 cable connections outside, a weather boot covering and some sort of Silicone compound are highly recommended.
Rate this product.
Product isn't rated yet. Write a review.

3-Way Splitters are typically the Part you would use to take One (1) cable Feed and "Split" it into Three (3) in order to Provide Signal to 3 Independant Devices, or Two More Cables to complete the Run(s) to their Final Destination(s). Please be Sure to Select the Appropriate Splitter not just By Manufacturer and Price. But Rather, Consider the Specifics of Bandwidth, Packaging (Indoor vs. Outdoor), Loss, Powering Requirements Up/Down-Stream and the Overall Needs of the Final System You Wish to Create...

If you are adding a splitter to an existing Cable TV or Antenna feed, you may need to compensate for the loss that you are about to introduce. The gain of a Line Amplifier should be selected to zero out the loss that follows it. In other words, if you have fifty feet of cable and a two-way splitter, then a 10 db amplifier will be fine. Conversely, if you have an eight-way splitter and hundreds of feet of cable, you will need an amplifier with a higher gain. Just as in the case of a Pre-Amplifier, however, bigger is not always better.

Commensurate with Coaxial Cable TV Antenna Splitter Installation, you want to Ground your Cable TV or HDTV Antenna Coaxial Cable System Outside before bringing the TV Cable Inside. This way, Lightning Strikes and Power Surges have an opportunity to arrest before reaching your TV and Entertainment Electronics. The Integral Grounding Block designed onto every Outdoor Use Compatible RF Signal Splitter we sell will effectively convey this unwanted Electrical Energy to a Ground Rod via a Copper Ground Wire that you Install (not included). Consult your Local Building Code and NEC for guidance to Properly Grounding your HD TV Antenna, Cable TV, WI-FI, Wireless Internet, Business Band, CB or Amateur Radio Antenna Installation.
