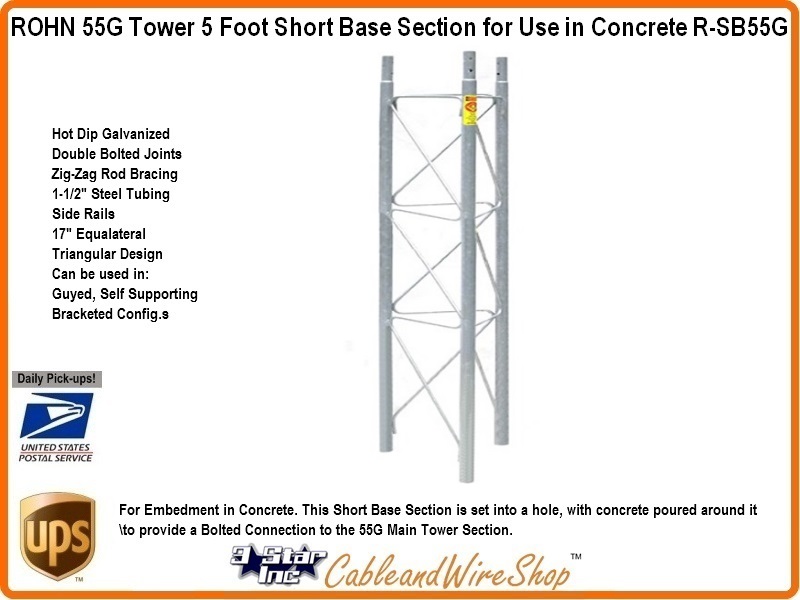

ROHN 55G Tower 5 Foot Short Base Section for Use in Concrete SB55G

Price$225.00
Manufacturer CodeSB55G
Qty
AvailabilityUsually ships in 24 Hrs
ShippingCan ship Canada

Highlights

Hot Dip Galvanized
Double Bolted Joints
Zig-Zag Rod Bracing
1-1/2" Steel Tubing
Side Rails
17" Equalateral
Triangular Design
Can be used in:
Guyed, Self Supporting
Bracketed Config.s

Bulk Quantities Available Here!

ROHN SB55G 5 Foot 0 inch Short Base Tower Section
for Embedment in Concrete. This Short Base Section is set into a hole, with concrete poured around it to provide a Bolted Connection to the 55G Main Tower Section. This Tower Section uses double bolted joints which are proven to be the best method of joining tower sections for sturdiness and dependability. Featuring a 17" equilateral triangular design, the R-SB55G is constructed of extra heavy duty 1-1/2" steel tubing side rails with continuous solid steel rod bracing. The 55G tower can be used guyed, self-supporting or bracketed configurations according to specifications in the ROHN Catalog. As a guyed structure, it can rise to a maximum of 400 feet. Self-supporting and bracketed heights depend on loading and are also specified in the ROHN Catalog.




Be sure to check out the suggested Concrete Base Pier Specifications and Maximum Self-Supporting 55G Tower Height found on our ROHN Catalog Links in the Footer below.



Rate this product.
Product isn't rated yet. Write a review.

ROHN Products, LLC manufactures a Variety of Compatible Galvanized Steel Base-Plates to Facilitate Installation of your ROHN 55G Tower onto any Type of Foundation Requirement you may have. Foundation and Base Plate Engineering Documentation Provided by ROHN is available here as a Resource, but is by no means complete by itself or a susbstitution for Engineering Conducted Specific to your Application. When Selecting a Base Plate for Your ROHN 55G Tower that will affix to an existing Structure or Foundation, please evaluate that Structure or Foundation as being conducive to the Plan you envision. As always, Consult your Local Structural Engineer, Building Code and NEC for guidance to Properly Installing and Grounding your ROHN 55G Tower Installation.

ROHN Products, LLC manufactures Mounting Brackets to Attach to, and derive Support from, other Load Bearing Structures in the immediate vicinity of your ROHN 55G Tower in both Self-Supporting and Guyed Installations. These 55G Brackets are all Solid Galvanized Steel and could possibly convey considerable Load to the Structures of which they are attached. Assure yourself through Investigation that the Structure you wish to Bracket to will handle the ROHN 55G Tower's Load transferred to it as is, or can be Supplemented in some Engineered fashion as to match and counter the Load applied. As always, Consult your Local Structural Engineer and Building Code for guidance.

ROHN Products, LLC manufactures Mounts to Facilitate Attachment of Popular Antenna Designs for a Multitude of Applications, including but not limited to; Wireless Internet, Amateur Radio, Cellular Telephone, SCADA, Telemetry, PCS, Microwave Point to Point, Microwave Point to Multi-Point, MDS, MMDS, Broadcast, Off-Air TV, Satellite TV, DBS, WI-FI, Business Band or CB Antenna Installations. Most Antenna Mounts and Top Cap Section Design differences involve the Diameter and Length of the Masting used, or to be applied for Use with the Particular Antenna Dimensions and Wind Loading involved. Wind Loading, Antenna Loading and Wind Survivability ratings vs. Height Documentation Provided by ROHN is available here as a Resource, but is by no means complete by itself or a susbstitution for Engineering Conducted Specific to your Application. Contact Us with any Questions you may have regarding Use prior to Purchase. All Information regarding the ROHN 55G Tower line, Parts and Accessories is as accurate and complete as we can possibly provide given that this Resource Offering is subject to change without Notice and is beyond Our Control.


ROHN 55G Buyers Guide



ROHN 55G Buyers Guide


Get Adobe Reader



This Buyers Guide will answer many questions you may have on this Product Line.
