RON-104 Deluxe 4" Standoff TV Antenna Mast W Wall Mount Bracket

True 4 inch Stand-Off
"W" Type Configuration
11 guage Steel
Anti-Turn Screw
Up to 1-1/2 inch Dia
Hardware Included

Bulk Quantities Available Here!

Manufacturer CodeRON-104
Stock Level: 0
AvailabilityCall to Order
ShippingCan ship anywhere

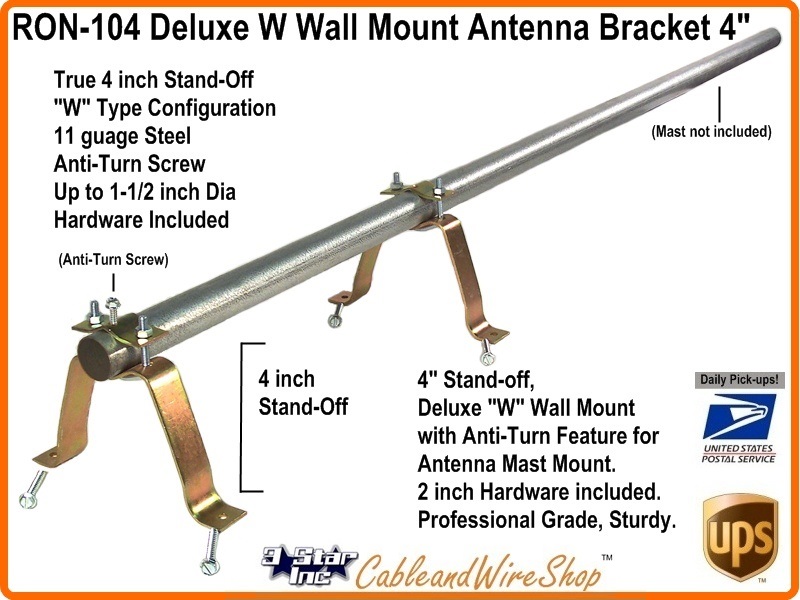

RONARD RON-104 4" Stand-off TV Antenna Mast Wall Mount with Anti-Turn Feature
For Mounting Mast from 1 to 1.50 Inches in Diameter and up to 10 Feet in Height. 2 inch Hardware included. Professional Grade, Sturdy.(Mast not Included)
This Design of Wall Mount Bracket for Antenna Mast installation is unique as it provides an additional Set Screw applied to the Mast inserted to prevent twisting and turning in the wind. It can accomodate 1.00 to 1.50 inch diameter Masting for antennas (which is normal) safely with the Hardware that is supplied. If you are Installing larger masts such Telescopic Antenna Masts, use "W" Brackets that feature 2 and 1/2 inches between Clamp Bolts instead and run the Mast length all the way to the Ground, resting the weight on a Mast Ground Plate and affix an Earth Ground there with a 5/8 inch diameter, 8 foot long Ground Rod as a minimum.
Specification Sheet
wall mount stand off
RON-104 Deluxe 4" Standoff Antenna Mast W Wall Mount  Bracket EZ46-3PO Pitch Pad Moisture Barrier Kit - $1.60
EZ 46-3PO Pitch Pad Only Kit
Made in the USA!Made in the USA!
Comes with ( 3 Pitch Pads 3" x 1.5" only) for Weather-Proofing Bracket Mounting Installations on Exterior Surfaces...

RON-104 Deluxe 4" Standoff Antenna Mast W Wall Mount  Bracket EZ5-16 Galvanized Antenna Mast 5 foot by 1.25" OD 16 AWG - $9.95
EZ 5-16 5 Foot Galvanized
Made in the USA!Made in the USA!
This is a 5 Foot (60") by 1.25" OD 16 AWG Galvanized Antenna Mast (Mount Not Included)...

RON-104 Deluxe 4" Standoff Antenna Mast W Wall Mount  Bracket EZ5-16S Swaged Antenna Mast 5 Foot by 1.25" OD 16 AWG - $10.95
EZ 5-16S 5 Foot 16 AWG Swaged Antenna Mast Section
Made in the USA!Made in the USA!
This 5 Foot (60") by 1.25" OD 16 AWG swaged end Antenna Mast tube is galvanized for weather and used to extend any 1-1/4 inch 16 gauge antenna masts by fitting the swaged end of this mast into the open end of the other mast tube, thereby extending the existing mast an additional 5 feet. Manufacturers recommend that masts heights of 10 feet and higher be guyed...

Product isn't rated yet. Write a review.

Wall Mounts

Wall & Eave Mount Brackets

Wall & Eave Mount Brackets for Satellite TV Antenna Mast, Cellular Wireless Internet, Business Band and Telescopic Antenna MastsIt is Important to choose an Antenna Mount and Wall Mounting Location with a Picture of the Finished Antenna Installation in Mind. Be Sure to First select a location that lends itself to applying a Vertical, Cantilevered, Twisting Load without Compromising the Integrity of the Wall Material you affix to. Most Modern Exterior Decorative Wall Finishes most often do not have the Strength to Hold the Weight and Pressure of a Large TV Antenna under Wind Load without fail. Beams and Studs within the Wall are an Absolute Must to Locate when the Wall Composition is anything other than Solid wood or Concrete. Attach to these Strength Members. Further, Think about what's underneath the Wall exterior. Is it stronger, will it yield to Pressure over time as well? Sandwich additional Material (wood or steel) to the backside or both sides of the wall at the points where the mount attaches, as to distribute the load on relatively weak wall materials and to dampen vibration from Wind. Weather Proof the Installation to Maintain the Integrity of your Home. Next consider the Location over a Lifetime of Adjustments, does it lend itself to modifications in Height or Direction? Larger Antennas increase the surface area presented to air movement, Hence, Wind-load does increase. As the length of the mast increases from Its last attached point on the structure, the torque applied also increases with Weight and Wind-Load, requiring a more substantive attachment and Load-Bearing material. Keep the Distance Minimal from the Antenna to the TV's and Equipment you feed, as to minimize loss and the need for Amplification. Further, the NEC (National Electrical Code partly defines a good Ground connection as being as short as possible, you must affix a connection to a good Earth Ground prior to Premise entry or Bond to an existing one.
