TVC 3-Way Horizontal Splitter 5-1000 MHz. -W- Ground

Price$2.60
Manufacturer CodeTVC_GHS-3
Stock Level: 0
AvailabilityCall to Order
ShippingCan ship anywhere
Highlights

5-1000 MHz. Bandwidth
40 dB port-to-port isolation*
35 dB output return loss*
Low intermodulation design
Corrosion resistive
Zinc alloy diecast housing
100% Soldered backplate
*(Return Band)

Bulk Quantities Available Here!

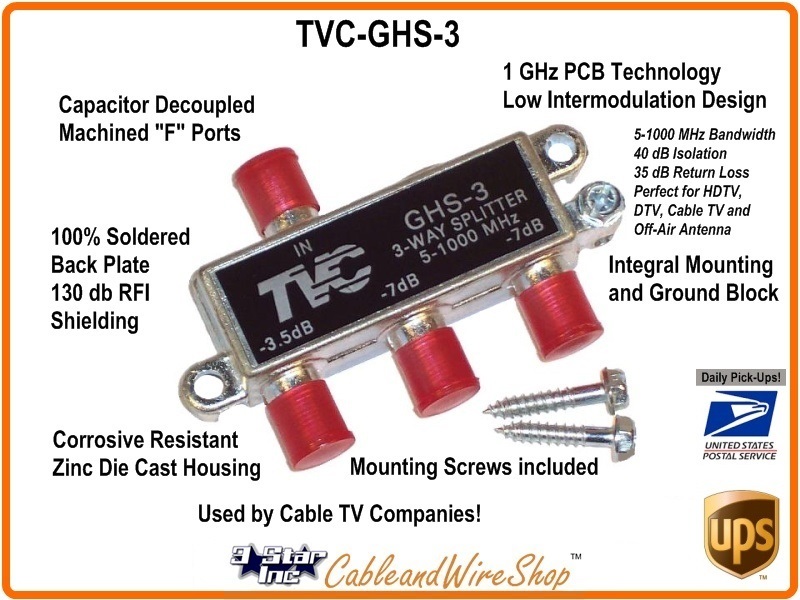

TVC GHS-3 3-Way 1 GHz Coaxial Cable TV Antenna Signal Splitter
Low intermodulation design and optimized return band prevents high cable modem signals from affecting forward band transmission. Therefore, the GHS-3 series digital splitter is ideal for present and future multimedia applications. One Low-Loss Output (-3.5 db) and Two Low-Loss Output (-7.0 db, -8.0 db max.) Ports for different drop length applications.
Rate this product.
Product isn't rated yet. Write a review.

3-Way Cable TV Splitter

3-Way Splitters are typically the Part you would use to take One (1) cable Feed and "Split" it into Three (3) in order to Provide Signal to 3 Independant Devices, or Two More Cables to complete the Run(s) to their Final Destination(s). Please be Sure to Select the Appropriate Splitter not just By Manufacturer and Price. But Rather, Consider the Specifics of Bandwidth, Packaging (Indoor vs. Outdoor), Loss, Powering Requirements Up/Down-Stream and the Overall Needs of the Final System You Wish to Create...

If you are adding a splitter to an existing Cable TV or Antenna feed, you may need to compensate for the loss that you are about to introduce. The gain of a Line Amplifier should be selected to zero out the loss that follows it. In other words, if you have fifty feet of cable and a two-way splitter, then a 10 db amplifier will be fine. Conversely, if you have an eight-way splitter and hundreds of feet of cable, you will need an amplifier with a higher gain. Just as in the case of a Pre-Amplifier, however, bigger is not always better.

Commensurate with Coaxial Cable TV Antenna Splitter Installation, you want to Ground your Cable TV or HDTV Antenna Coaxial Cable System Outside before bringing the TV Cable Inside. This way, Lightning Strikes and Power Surges have an opportunity to arrest before reaching your TV and Entertainment Electronics. The Integral Grounding Block designed onto every Outdoor Use Compatible RF Signal Splitter we sell will effectively convey this unwanted Electrical Energy to a Ground Rod via a Copper Ground Wire that you Install (not included). Consult your Local Building Code and NEC for guidance to Properly Grounding your HD TV Antenna, Cable TV, WI-FI, Wireless Internet, Business Band, CB or Amateur Radio Antenna Installation.
