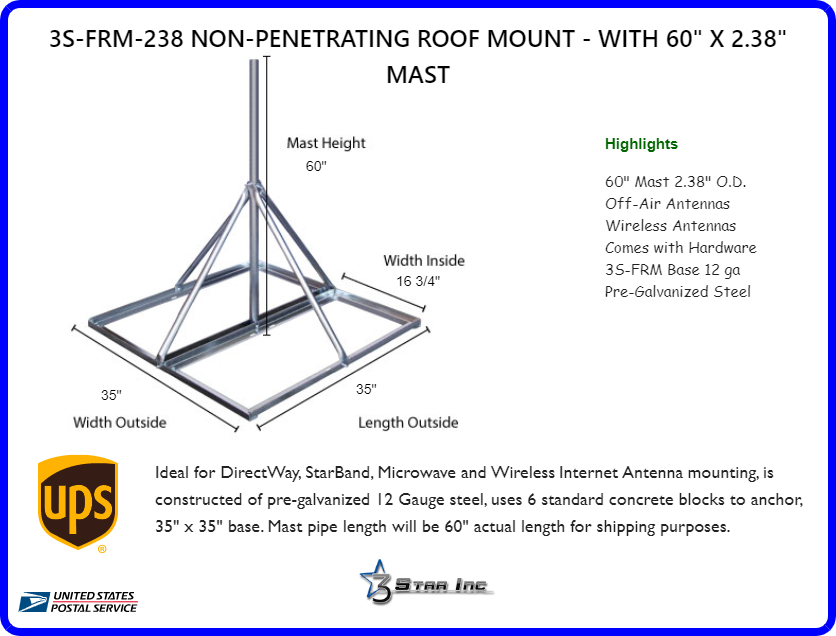

3S-FRM-238 Non-Penetrating Roof Mount - With 60" x 2.38" Mast

3S-FRM-238 Non-Penetrating Roof Mount -w- 60" x 2.38" Mast

Made in the USA!
Ideal for Light Off-Air TV and Wireless Internet Antenna mounting, is constructed of pre-galvanized 12 ga. steel, uses 6 standard concrete blocks to anchor, 35" x 35" base. Mast pipe length will be 60" actual length for shipping purposes.

This Pre-Galvanized  Finished Non-penetrating Roof Mount Base allows you to install DBS, TV Antenna and WiFi Internet systems on flat roofs where no holes can be drilled. The heavy steel base is 35" square. Pre-Galvanized Finished (thick) Steel Mast is 2.375 inches in Outside Diameter and 60 inches in Height from Base. Perfect for use with DirecWAY and StarBand systems. Can be Used as a Penetrating Mount without Ballast when Field Drilled to use optional Pitch Pad Kit. Compares to Other Name Brand Hardware at Half the Price. Optional FRMMAT ( Mat ) and FRMPAD ( PAD ) available

 Additional Features Include

• Offer both Fixed Mounts and Ballast Roof Mounts
• Pre-Galvanized for corrosion protection
• Varied mast heights available
• Varied mast pipe O.D. available
• Quickly shipped and quickly assembled
• Minimum bolted connections
• Engineering ballast tables available
• Optional roof pads and mats available
• All models are UPS shippable

•



Height and Antenna Loading capability are dependent upon ballast weight... You need to Consult an Engineer to determine the Load Bearing Capability of the roof that you are entertaining such an Installation. It is Important to choose a Mount and Mounting Location with a Picture of the Finished Installation in Mind. Be Sure to First select a location that lends itself to applying a Load without Compromising the Integrity of the Material you affix to. Most Decorative Finishes most often do not have the Strength to Hold a Weight or Pressure without fail. Further, Think about what's underneath the exterior. Is it stronger, or will it yield to Pressure over time also? Weather Proof the Installation to Maintain the Integrity of your Home. Next consider the Location over a Lifetime of Adjustments, does it lend itself to modifications in Height or Direction? Larger Antennas increase the surface area presented to air movement, Hence, Wind-load does increase. As the length of the mast increases from Its last attached point on the structure, the torque applied in cantilever also increases with Weight and Wind-Load, requiring a more substantive attachment and Load-Bearing material. Keep the Distance Minimal from the Antenna to the TV's and Equipment you feed, as to minimize loss and the need for Amplification.
