ROHN 7/16 inch Big Grip Guy Wire Strand Pre-Form Dead-End R-BG2148

Printer Friendly Tell a Friend

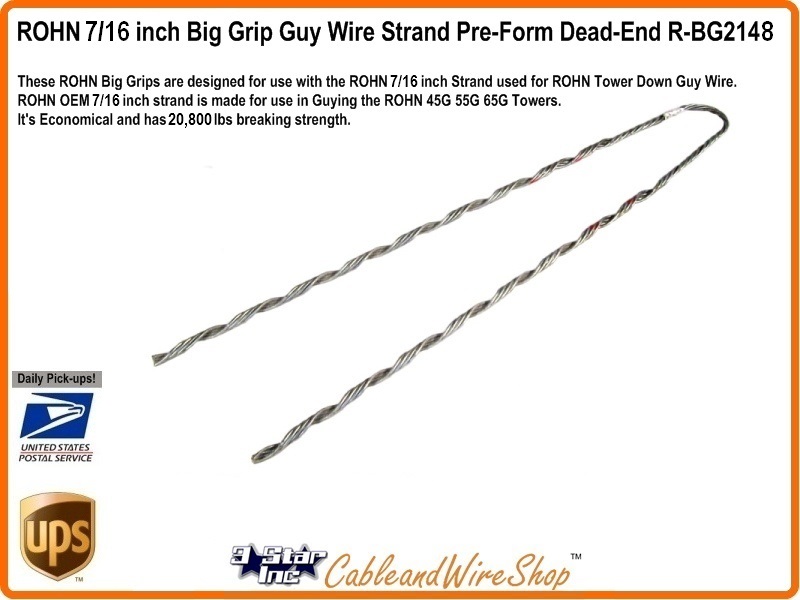

ROHN 7/16 inch Big Grip Guy Wire Strand Pre-Form Dead-End R-BG2148
ROHN Products, LLC
Price: $26.40
Mfr. Code: R-BG2148

Qty:

Highlights:
Galvanized
Pre-Formed Dead End
Extra High Strength
20,800 lbs. Breaking Pt.
For 7/16" Dia. Strand
7 Wire Strand

Description
ROHN BG2148 Big Grip Pre-Formed Deadends for 7/16 inch EHS Galvanized Strand
These ROHN Big Grips are designed for use with the ROHN 7/16 inch Strand used for ROHN Tower Down Guy Wire. ROHN OEM 7/16 inch strand is made for use in Guying the ROHN 45G 55G 65G Towers. It's Economical and has 20,800 lbs breaking strength. These Big Grips are pre-formed and easy to use with 9/16 Heavy Open Eye Thimbles (Part Number R-9/16THH is a Separate Item). Consult ROHN Catalog Link Below for ROHN 25G 45G 55G 65G Tower Down Guy wire Details for Various Wind Loads.
Compare to Preformed Line Products BG-2148 Big-Grip Dead-end GALVANIZED STRAND For use on: Extra High Strength, Siemens Martin High Strength, Utilities Grade!

ROHN Catalog



ROHN Catalog


Get Adobe
Reader




This BG2148 Big Grip is specifically designed for use with the ROHN Guy Wire Strand for ROHN Tower Guy-Off during Tower Erection, Permanant Installations, Temporary Installations and Take-Down Dis-Assembly. Works great around the Treble Knuckle of some of the Larger Utility Guy Wire Anchors and when used with a Collar insert for use with the smaller Single Eye Guy Wire Anchors (Sold Separately).

Availability: Usually ships in 1 week
Shipping: Can ship anywhere
Tower Down Guy & Anchor
ROHN Tower Down Guy and Anchor Materials Tower Down Guy and Anchor Material included here are that which comprise the Kits specified by various dated and current ROHN catalogs. Reference the Pre-Engineered Kit Packages in the 25G 45G 55G 65G Buyer's Guides by Height and Wind load to build or supplement your ROHN ;G-Series Guyed Tower to current REV. G Specifications. New REV. G and Older REV. F Specification Sheets may be found in the various "ROHN Tower" links in the Footer section below and are made available only for study and reference. Any Departure or Questions of variance from the Pre-Engineered formats should be forwarded to and engaged by a Engineer qualified to make such determinations.

ROHN Complete Tower ID Nomenclature

GUIDELINES FOR THE PREPARATION OF A GEOTECHNICAL REPORT

I. PURPOSE AND INTENT

a) The intended purpose of these guidelines is to assist the customer and/or owner to retain the services of a Geotechnical Engineer.

b) It is not ROHN’s purpose or intent to supercede the Geotechnical Engineer’s knowledge, judgement and/or experience. It is the Geotechnical Engineer’s responsibility to add or delete from these items, based on local site conditions and other factors.

c) Additional information is provided in ANSI/TIA-222-G Annex G “Geotechnical Investigations”.

II. DISCLAIMER

a) ROHN will not accept any liability, either expressed or implied, for the use of, and omissions in, these guidelines.

III. EXPLORATORY BORINGS

a) Borings should be taken at tower legs for self-supporting towers and at the base and anchor points for guyed towers. For small self-supporting towers, two borings may suffice. For large self-supporting towers, one boring should be taken at each tower leg. A “small” self-supporting tower is assumed to have a face width less than 20 feet and a compression load less than 50 kips per leg. For pole structures, one boring may suffice.

b) The minimum boring depth should be 30 feet for pole structures, self-supporting towers and guyed tower bases. For guyed tower anchors, the minimum depth should be 15 feet. The actual depth of boring must be determined by the Geotechnical Engineer based on reactions, soil conditions and the type of foundation recommended.

c) If borings cannot be advanced to the desired depth, rock corings should be taken. Rock Quality Designation (RQD) values and compressive strengths should be determined.

IV. GEOTECHNICAL REPORT

a) The following properties, for each soil layer encountered, should be determined by field or laboratory testing and summarized in the geotechnical report:

1. Soil classification and elevations
2. Standard penetration values
3. Unconfined compression strength
4. Angle of internal friction
5. Cohesion
6. “In-Situ” soil density and moisture content
7. Rock quality designation (RQD) and percent rock sample recovered
8. Other properties unique to site conditions

b) The following items should be discussed in the geotechnical report:

1. Geological description of site
2. Observed and expected ground water conditions
3. Expected frost penetration depth
4. Corrosion potential of soil and corrosion protection recommendations
5. Site access and potential construction difficulties
6. Dewatering or site drainage requirements
7. Backfill material recommendations
8. Settlement considerations
9. Additional information to aid foundation designer
10. Recommended types of foundations
11. Design parameters for uplift, download and lateral load
12. Factor of safety considered when allowable vs. ultimate design parameters are provided
13. Recommended construction techniques and inspections
