C-MT Antenna Mast Pole to Pole or Pipe Perpendicular Crossover Plate Kit

3 Star Inc C-MT Antenna Mast Pole to Pole or Pipe Perpendicular Crossover Plate Kit
Made in the USA!

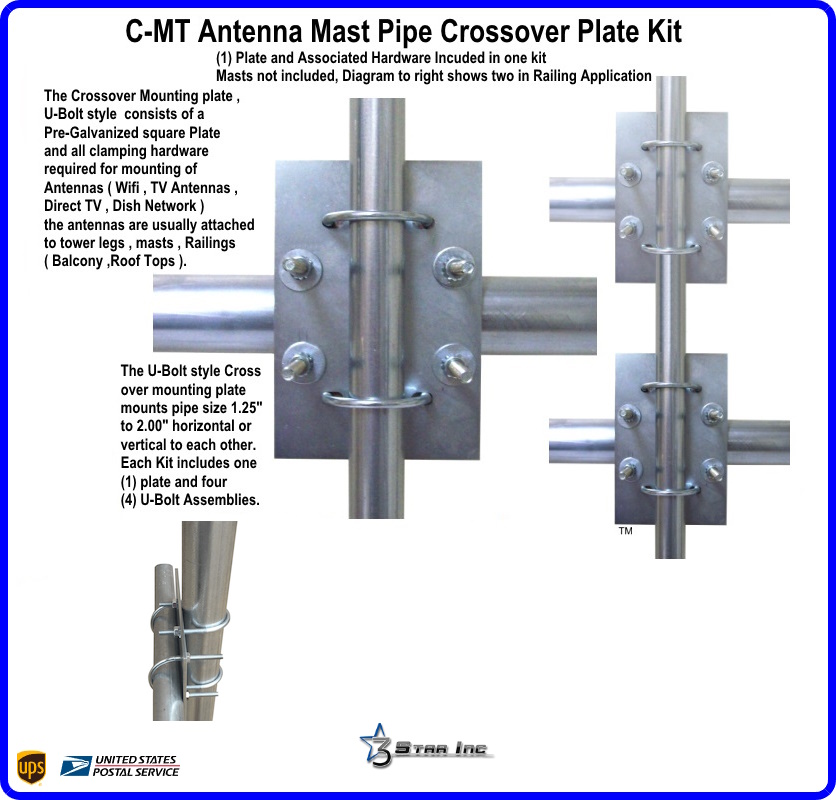

This C-MT Crossover Plate Kit uses U-Bolt style clamps to mount (2) Antenna Mast Tubes of 1.00" OD to 2.00" OD onto a Backing Plate at a 90 degree angle to each other

The Crossover Mounting plate, U-Bolt style consists of Pre-Galvanized square Plate and all clamping hardware required for mounting of Antennas (Wifi, TV Antennas, Direct TV, Dish Network) the antennas are usually attached to Tower legs, Masts, Railings (Balcony ,Roof Tops). The U-Bolt style Crossover mounting plate mounts pipe size 1.00" to 2.00". Sometimes used to affix a Twin antenna U-Mast Assembly to a vertical mast, but mostly used to affix a vertical mast to and existing horizontal appurtenance. Each Kit includes one (1) plate and four (4) U-Bolt Assemblies

Features and Specification

Vertical or Horizontal Mounting
Pre-Galvanized Mounting Plate
Plate Dimensions 5" x 7"
U-Bolts Round Bend:
(2) 5/16" x 2.00" Wide x 4-3/16" Long
(2) 1/4" x 2.00" Wide x 3.00" Long
Kept Nuts: (4) 1/4" and (4) 5/16"

Maximum Tubing Size: 2.00" Outside Diameter

Buyers Guide

Spec Sheet

Download

Cross Over Perpendicular Mast Pole Pipe Mounts

Crossover Mounts accommodating 2-3/8" OD through 4-1/2" OD Mast Tube Pipe are HDG (Hot Dipped Galvanized).
Crossover Mounts accommodating 1.00" OD through 2.25" OD Mast Tube are of a Pre-Galvanized Plated Finish.
All are used to Fixate and Hold (2) poles to cross perpendicularly, one to the other, preferably from an integral Structure Member to another, or even Freestanding. An Example would be attaching a Vertical Mast Pole Tube to an existing Horizontal Welded Guard Rail at two levels (Top and Mid rail) utilizing (2) Crossovers as to maintain a Cantilever against Weight and Wind Loading on the Mast being installed.
If You need to attach a Vertically Running Mast Pole to the Vertical Post, please refer to the "Pole to Pole Mount" Category in this section!

You can increase the amount of strength and holding power by utilizing multiple mounts space out over the length of the Mounting Pipe. There are many reasons you might need to use these mounts and they mostly involve the need to attach a pole to another pole to either extend the original or simply as an attachment point for prime placement location.

Both Pole to Pole and Crossover Mounts are designed to support most WiFi , PCS, Cellular, SCADA, TV and Other Light to Midweight antennas. Consult a Structural Engineer if meeting Wind Speed survivability ratings is necessary.

All of Our Mounts in this Category can easily be shipped UPS, depending on QTY Dimensional Weight.
