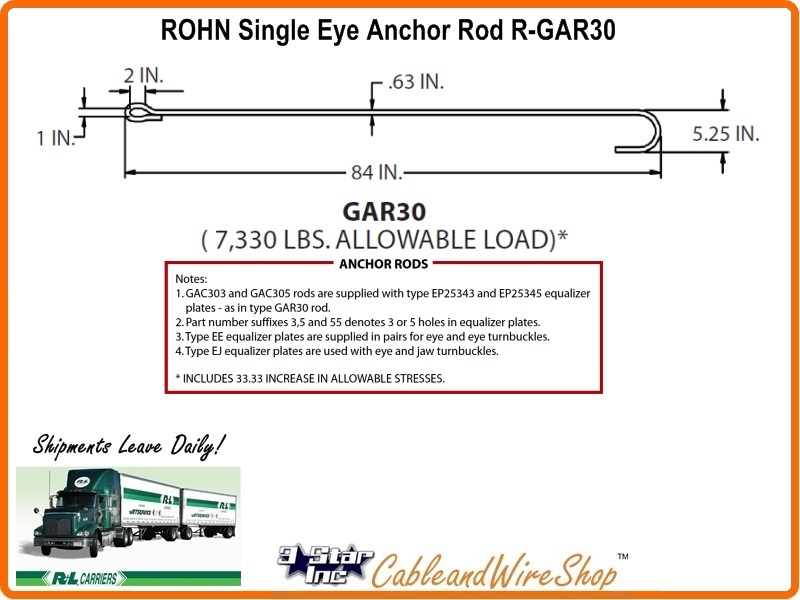

ROHN Tower GAR30 Concrete Down Guy Anchor Rod with Single Eye

Manufacturer CodeGAR30
AvailabilityUsually ships in 24 Hrs
ShippingCan ship Canada


Hot Dip Galvanized
84 inches long
For Embedment in Concrete
Single Eye accepts Equalizer Plates

Bulk Quantities Available Here!

ROHN GAR30 Concrete Tower Guy Anchor Rod with Single Eye
Embeds in Standard Concrete Anchor Block for ROHN 25G 45G 55G 65G Tower Down Guy Attachment to Single Eye, or with 2-way, 3-way or 5-way Equalizer Plate attachment (Separate Item) for distributing Tower Down Guy Anchor Attachment amongst several Down Guys. The Use of this Anchor and Others is Specified in the ROHN Buyer's Guide for Individual Tower Model Numbers based on Height and Wind Load Ratings. When used as a single guy anchor, use and Eye to Jaw Turnbuckle larger than 3/8 inch.

anchor block

Anchor Block


Spec. Sheet

Guy Attachment

Get Adobe Reader






This Down Guy Concrete Anchor Rod is the Bottom Half of your ROHN 25G 45G 55G 65G Guyed Tower Installation. Install the Guy Brackets at Heights indicated by the ROHN Catalog (Link above) as per REV. G or REV. F Wind Load Ratings, Space and Install in the Concrete Anchor Rods in Anchor Blocks as Specified for the Particular Height and Wind Load Application by Model Number.





Rate this product.
Product isn't rated yet. Write a review.

Tower Guy Wire Tension Guide

The recommended initial tension in guy wires is 10% of their ultimate tensile strength. There are two different grades of steel used for good guy line (clothes line does not count), HS (high strength) and EHS (extra high strength). The Rohn manual gives the following info on 3/16 and 1/4 in cable.
