High Definition Component Video Audio Wall Plate Extender

Price$84.95
Manufacturer Code132
Qty
AvailabilityUsually ships in 24 Hrs
ShippingCan ship anywhere

Highlights



Bulk Quantities Available Here!

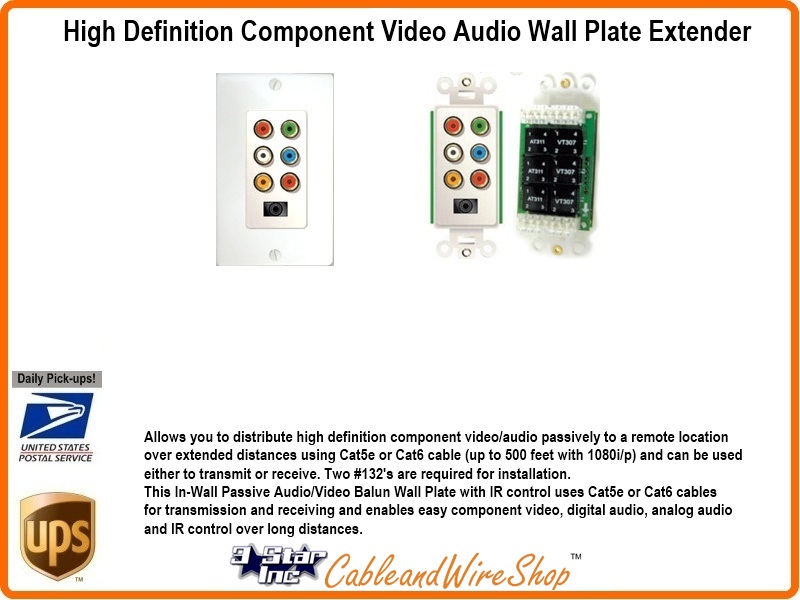

SCP 132 High Definition Component Video/Audio Wall Plate Extender
Allows you to distribute high definition component video/audio passively to a remote location over extended distances using Cat5e or Cat6 cable (up to 500 feet with 1080i/p) and can be used either to transmit or receive. Two #132's are required for installation. This In-Wall Passive Audio/Video Balun Wall Plate with IR control uses Cat5e or Cat6 cables for transmission and receiving and enables easy component video, digital audio, analog audio and IR control over long distances. The passive design simplifies installation and is the ideal choice for a variety of installations. One pair of buttons is a fully functional plug’n play set.

Transmission distance: Typical installation will allow up to 1,000 feet with 480i and 500 feet with 1080i/1080p signals and digital audio.

IR Port: Supports an IR sensor (3 wires) or emitter (2 wires) via 3.5mm (1/8”) jack. Simple connections on the rear support tool-less wiring or typical punch-down tools. Fits in standard single gang junction box. Ships assembled with white decorator plate. A light almond face plate is also included in the package for easy in-field changes.

Power: No power required

spec. sheet



Spec. Sheet


Get Adobe Reader




Rate this product.
Product isn't rated yet. Write a review.

Surround Sound Home Theater Wall Plates

Surround Sound Home Theater Wall-Plates that incorporate HDMI, RCA, F and other Popular Connections in Combinations for Installing In Home Theater and Surround Sound Entertainment Applications.

5.1 ("five point one") is the common name for six channel surround sound multichannel audio systems. 5.1 is now the most commonly used layout in both commercial cinemas and home theaters. It uses five full bandwidth channels and one low frequency enhancement channel (the "point one"). Dolby Digital, Dolby Pro Logic II, DTS, and SDDS are all commonly 5.1 systems. 5.1 is also the standard surround sound audio component of digital broadcast and music.

All 5.1 systems use the same speaker channels and configuration, having a front left and right, a center channel, and two surround channels.

Blu-ray and Digital cinema both have eight-channel capability which can be used to provide either 5.1 or 7.1 surround sound. 7.1 is an extension of 5.1 that uses four surround zones: two at the sides and two at the back.

7.1 ("seven point one") surround sound is the common name for eight channel surround audio systems. It adds two additional speakers to the more conventional six channel (5.1) audio configuration. 7.1 surround sound positional audio uses the standard front, center, and LFE (bass) speaker configuration. In its most common configuration, 7.1 surround sound includes two speakers positioned to the side and two to the rear. 7.1 surround sound can also refer to 5.1 surround sound configurations with the addition of two front height channels positioned above the front channels or two front wide channels positioned between the front and surround channels.

The Blu-ray Disc and the HD DVD home video formats provide up to 8 channels of lossless DTS-HD Master Audio, Dolby TrueHD or uncompressed LPCM audio at 96 kHz/24-bit. The Sony PlayStation 3 video-game console can output up to 7.1 LPCM through HDMI for both Blu-ray movies and games.
