ROHN PWM Heavy Duty Microwave & Directional Antenna Pipe Wall Mount Kit

ROHN PWM Parabolic, Directional and Microwave Dish Pipe Bracket Wall Mount Kit

Made in the USA!

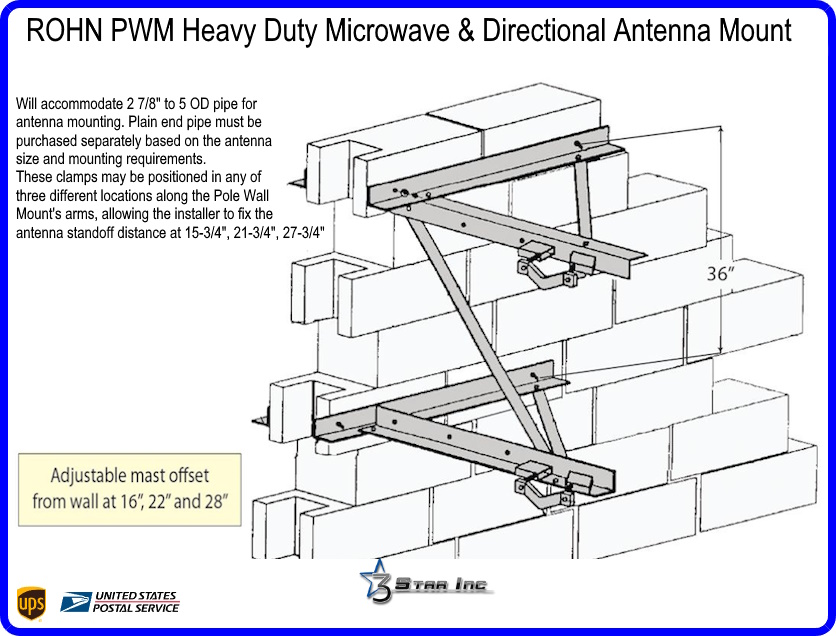

The Rohn Wall Mount is designed to support most Satellite, PCS, Cellular and Wifi Antennas. The Pole Wall Mount is a robust mount which is designed to provide secure support for Microwave, Directional or Omni Wireless Antennas. The design features two parallel mounting brackets and support bracing to maximize stability. The versatile integrated clamps accommodate 2 7/8" to 5 OD pipe for antenna mounting. Plain end pipe must be purchased separately based on the antenna size and mounting requirements. These clamps may be positioned in any of three different locations along the Pole Wall Mount's arms, allowing the installer to fix the antenna standoff distance at 15-3/4", 21-3/4", 27-3/4". Installation hardware must be purchased separately based on the specific application parameters. The Pale Wall Mount is "Hot-Dip" galvanized to ensure long-term performance in all environmental conditions. Designed for heavy duty commercial use for maximum performance.

Additional Features Include
- Hot Dipped Galvanized
- Accepts Pipe up to 5 1/2" OD
- Ideal for variety of antennas
- Easy To reach antenna from rooftop

Warranty Sheet

Buyers Guide

HMK18M Wall Mount

Download

PWM Spec Sheet

Download

ROHN Wall Mounts and Brackets for Antenna Mast Pipe

We carry ROHN Wall Mounts and Brackets to support antenna pipes, masts and lightweight towers. All antenna mast mounts are hot dip galvanized for durability, weatherability and constructed of lightweight, high strength ribbed flat stock steel.

All ROHN mounts features include:

Will extend beyond most residential roof overhangs
Available in 4", 8", 12", 18" and 24" stand-offs
Available as single or double brackets

It is Important to choose an Antenna Mount and Wall Mounting Location with a Picture of the Finished Antenna Installation in Mind. Be Sure to First select a location that lends itself to applying a Vertical, Cantilevered, Twisting Load without Compromising the Integrity of the Wall Material you affix to. Most Modern Exterior Decorative Wall Finishes most often do not have the Strength to Hold the Weight and Pressure of a Large TV Antenna under Wind Load without fail. Beams and Studs within the Wall are an Absolute Must to Locate when the Wall Composition is anything other than Solid wood or Concrete. Attach to these Strength Members. Further, Think about what's underneath the Wall exterior. Is it stronger, will it yield to Pressure over time as well? Sandwich additional Material (wood or steel) to the backside or both sides of the wall at the points where the mount attaches, as to distribute the load on relatively weak wall materials and to dampen vibration from Wind. Weather Proof the Installation to Maintain the Integrity of your Home.

Next consider the Location over a Lifetime of Adjustments, does it lend itself to modifications in Height or Direction? Larger Antennas increase the surface area presented to air movement, Hence, Wind-load does increase. As the length of the mast increases from Its last attached point on the structure, the torque applied also increases with Weight and Wind-Load, requiring a more substantive attachment and Load-Bearing material. Keep the Distance Minimal from the Antenna to the TV's and Equipment you feed, as to minimize loss and the need for Amplification.

Further, the NEC (National Electrical Code partly defines a good Ground connection as being as short as possible, you must affix a connection to a good Earth Ground prior to Premise entry or Bond to an existing one.
