ROHN 4 inch Heavy Duty Wall Mount Bracket WM4

Price$28.95
Manufacturer CodeWM4
Stock Level: 26
Qty
AvailabilityUsually ships in 24 Hrs
ShippingCan ship anywhere
Highlights
HDG  Finish
14 gauge Steel
Adjustable from 1.25 to 2.75 inch DIA
Lag Bolt Hardware not included
Wall Mount for:
   ROHN H20, H30, H40, H50
   Channel Master 1820, 1830, 1840, 1850

Bulk Quantities Available Here!

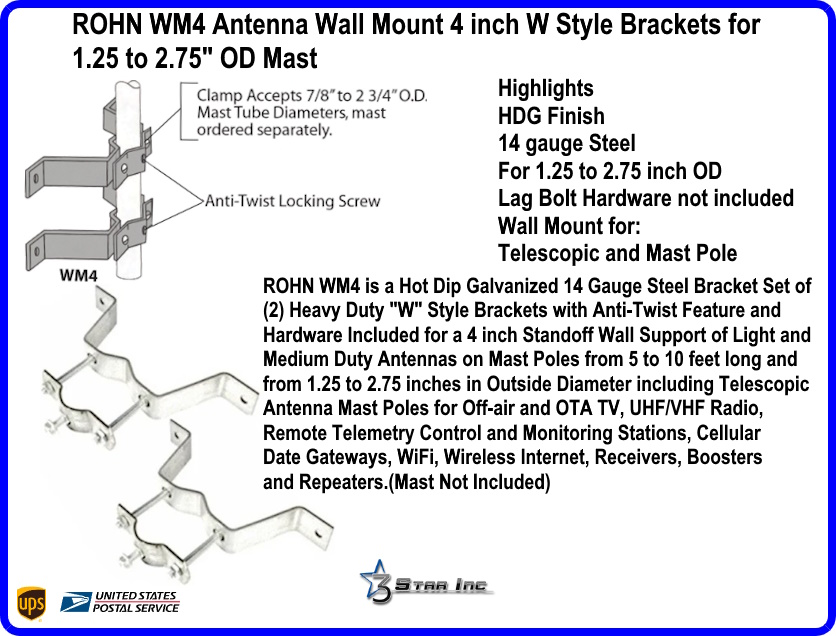

ROHN WM4 Telescopic Antenna Mast 4 inch "W" HD Wall Mount Bracket

Made in the USA!Made in the USA!
(this order is 1 pair) is designed to Wall Mount ROHN H50, H40, H30, H20 Channel Master 1620, 1630, 1640, 1650, 1820, 1830, 1840, 1850 Telescopic Push Up Antenna Masts. Hot Dipped Galvanized , 14 gauge steel with set screws, adjustable for Clamping Antenna Masts from 1.25 to 2.75 inches in Diameter. This Bracket will Stand off any Antenna Mast within this Diameter range, but is not designed to support the weight of any Telescopic Antenna Mast off of the Ground. Bonding should be made by affixment to Mast. Consult NEC and Applicable Local Code for further guidance.


Specification Sheet
part type
Wall Bracket
wall mounting hole pattern
Center to Center
mounting hardware
(4) ¼” x 2” Long Lag Screws + Anti Twist Set Screw
minimum pipe size
0.875" OD (7/8" OD) round mast
maximum pipe size
2.50" (2 1/2") OD round mast
qty
Set of 2 brackets
wall mount stand off
4"
ROHN Telescopic Antenna Mast Wall Mount Bracket R-WM4 EZ46-3 Pitch Pad Kit with Screws - $3.95
EZ 46-3 Pitch Pad Kit with Screws
Made in the USA!Made in the USA!
Complete with (3) 3 x 1.5" Moisture Barrier Pitch Pads and (6) 2 x 1/4" Hex Head Integral Washer Lag Screws for Weather-Proof Bracket Mounting to Exterior Surfaces. Most popular screw size for the majority of Antenna Mast Bracket Installations..

Read More
ROHN Telescopic Antenna Mast Wall Mount Bracket R-WM4 EZ46-3PO Pitch Pad Moisture Barrier Kit - $1.60
EZ 46-3PO Pitch Pad Only Kit
Made in the USA!Made in the USA!
Comes with ( 3 Pitch Pads 3" x 1.5" only) for Weather-Proofing Bracket Mounting Installations on Exterior Surfaces...

Read More
ROHN Telescopic Antenna Mast Wall Mount Bracket R-WM4 Satellite TV Antenna Combination Mast 5 foot by 1.66" and 2" OD - $12.95
3 Star 5994 1.66 and 2 Inch O.D. Combination Satellite and Off-Air TV Antenna Mast
(56-3/4" Length) by 1.66" and 2.00 " O.D. 16 AWG Galvanized Antenna Mast (Mount Not Included)...

Read More
ROHN Telescopic Antenna Mast Wall Mount Bracket R-WM4 Satellite Dish Antenna Ground Pole Mast 6 foot by 2.00" OD - $12.95
3 Star 5999 6 Foot 2.00 O.D. Steel Satellite Dish Ground Pole Mast
Ideal as a Super DISH and Wild Blue Dish Antenna Mast for Ground or Wall mount Installation (Mount Not Included)...

Read More
Rate this product.
Product isn't rated yet. Write a review.

Wall Mounts

Wall & Eave Mount Brackets

Wall & Eave Mount Brackets for Satellite TV Antenna Mast, Cellular Wireless Internet, Business Band and Telescopic Antenna MastsIt is Important to choose an Antenna Mount and Wall Mounting Location with a Picture of the Finished Antenna Installation in Mind. Be Sure to First select a location that lends itself to applying a Vertical, Cantilevered, Twisting Load without Compromising the Integrity of the Wall Material you affix to. Most Modern Exterior Decorative Wall Finishes most often do not have the Strength to Hold the Weight and Pressure of a Large TV Antenna under Wind Load without fail. Beams and Studs within the Wall are an Absolute Must to Locate when the Wall Composition is anything other than Solid wood or Concrete. Attach to these Strength Members. Further, Think about what's underneath the Wall exterior. Is it stronger, will it yield to Pressure over time as well? Sandwich additional Material (wood or steel) to the backside or both sides of the wall at the points where the mount attaches, as to distribute the load on relatively weak wall materials and to dampen vibration from Wind. Weather Proof the Installation to Maintain the Integrity of your Home. Next consider the Location over a Lifetime of Adjustments, does it lend itself to modifications in Height or Direction? Larger Antennas increase the surface area presented to air movement, Hence, Wind-load does increase. As the length of the mast increases from Its last attached point on the structure, the torque applied also increases with Weight and Wind-Load, requiring a more substantive attachment and Load-Bearing material. Keep the Distance Minimal from the Antenna to the TV's and Equipment you feed, as to minimize loss and the need for Amplification. Further, the NEC (National Electrical Code partly defines a good Ground connection as being as short as possible, you must affix a connection to a good Earth Ground prior to Premise entry or Bond to an existing one.
