Dual Side Arm Antenna Mount Assembly for 45G/45GSR/55G Tower | 4555MT-DUAL
3 Star Inc
Made in the USA!

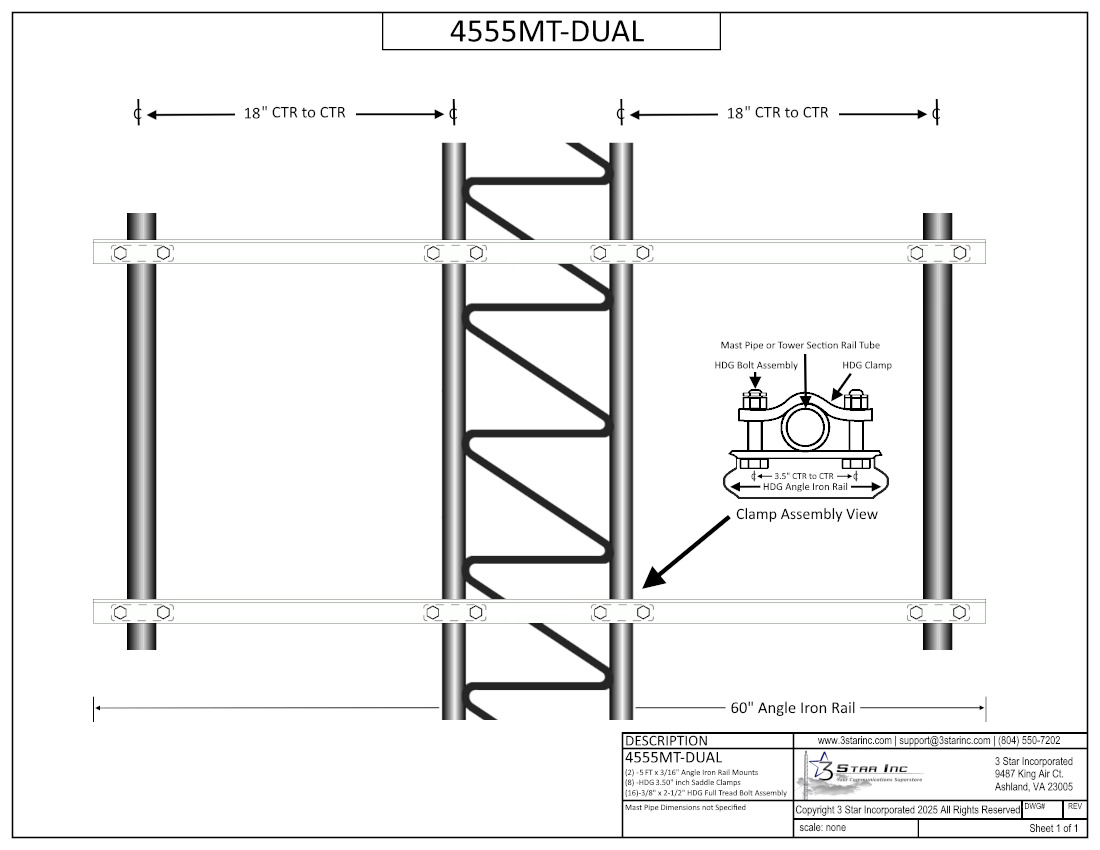

This Mount is a Heavy Duty Assembly comprised of (2) 2.50" inch HDG Angle Iron crossmembers, each 5' feet long (60" inches), that perpendicularly cross and clamp to the two Rails of Any 45G 45GSR 55G Tower Series Section Face, parallel to each other with about 3'-4' feet spacing between them. On both sides, at the extended Crossmember ends, braces a 4'-5' foot Mast Pipe (Typical, Pipe OPTIONAL) that is clamped at both resultant corners, resulting in an approx. 18.5" inch Stand-Off (Rail Center to Mast Pipe Center) on Both Sides of the Tower Section Face.
The The Assembly can mount an Antenna Mast Pipe diameter of 1-1/2 to 2-7/8 OD. on both sides
The Angle Iron, OPTIONAL Mast Pipe and Saddle Clamps that Attach them all are Hot Dip Galvanized, and the Bolt Hardware is HDG Grade 5. These Double Side Arm Mounts are intended for Light Weight Broadband, WiFi ,SCADA and Narrow Beamwidth Two-way Antennas.
Will Fit most ROHN, Nello and American Towers G-Style Communications Tower Series.
A Product of 3 Star Inc
Includes:
(2) -5' L x 2.50" W x 3/16" Thick HDG Angle Iron Rail Mounts
(8) -HDG 3.50" Inch Saddle Clamps
(16)-3/8" x 2-1/2" HDG Full Tread Bolt Assembly
Optional Mounting Pipe Sizes Available:
(1) -4' foot x 1.50" OD 14 Gauge HDG Pipe
(1) -4' foot x 2.00" OD 14 Gauge HDG Pipe
(1) -4' foot x 2.38" OD 14 Gauge HDG Pipe
DownloadROHN 45G Tower Accessories
ROHN Products, LLC manufactures a Variety of Compatible Galvanized Steel Base-Plates to Facilitate Installation of your ROHN 45G Tower onto any Type of Foundation Requirement you may have. Foundation and Base Plate Engineering Documentation Provided by ROHN is available here as a Resource, but is by no means complete by itself or a substitution for Engineering Conducted Specific to your Application. When Selecting a Base Plate for Your ROHN 45G Tower that will affix to an existing Structure or Foundation, please evaluate that Structure or Foundation as being conducive to the Plan you envision. As always, Consult your Local Structural Engineer, Building Code and NEC for guidance to Properly Installing and Grounding your ROHN 45G Tower Installation.
ROHN Products, LLC manufactures Mounting Brackets to Attach to, and derive Support from, other Load Bearing Structures in the immediate vicinity of your ROHN 45G Tower in both Self-Supporting and Guyed Installations. These 45G Brackets are all Solid Galvanized Steel and could possibly convey considerable Load to the Structures of which they are attached. Assure yourself through Investigation that the Structure you wish to Bracket to will handle the ROHN 45G Tower's Load transferred to it as is, or can be Supplemented in some Engineered fashion as to match and counter the Load applied. As always, Consult your Local Structural Engineer and Building Code for guidance.
ROHN Products, LLC manufactures Mounts to Facilitate Attachment of Popular Antenna Designs for a Multitude of Applications, including but not limited to; Wireless Internet, Amateur Radio, Cellular Telephone, SCADA, Telemetry, PCS, Microwave Point to Point, Microwave Point to Multi-Point, MDS, MMDS, Broadcast, Off-Air TV, Satellite TV, DBS, WI-FI, Business Band or CB Antenna Installations. Most Antenna Mounts and Top Cap Section Design differences involve the Diameter and Length of the Masting used, or to be applied for Use with the Particular Antenna Dimensions and Wind Loading involved. Wind Loading, Antenna Loading and Wind Survivability ratings vs. Height Documentation Provided by ROHN is available here as a Resource, but is by no means complete by itself or a substitution for Engineering Conducted Specific to your Application. Contact Us with any Questions you may have regarding Use prior to Purchase.
All Information regarding the ROHN 45G Tower line, Parts and Accessories is as accurate and complete as we can possibly provide given that this Resource Offering is subject to change without Notice and is beyond Our Control.
This Buyers Guide will answer many questions you may have on this Product Line. For more detailed information and Specification Sheets covering many aspects of Various Parts, Accessories and Installation Scenarios. Please refer to the "ROHN 45G Tower" Link appearing in the Footer of this Page Below!
