Universal Towers Aluminum Single Side Arm Antenna Mount fits 11, 14 and 18 Inch Sections

Universal Towers UV-CM Aluminum Single Side Arm Antenna Mount

View Larger Image

Price$198.00

Manufacturer CodeUV-CM

Stock Level: 5

Qty

Add to Cart View Cart Shipping Calculator

AvailabilityUsually ships in 24 Hrs

Highlights

Mount Assemblies include:
(2) 2"x2"x36" Aluminum Angle Brackets
(4) 1-3/8x1" Stainless U-bolts, Washers and Nuts
(2) 2-3/8x1" Stainless U-bolts, Washers and Nuts

Universal Towers UV-CM Aluminum Single Side Arm Antenna Mount fits 11, 14 & 18 Inch Sections
Made in the USA!

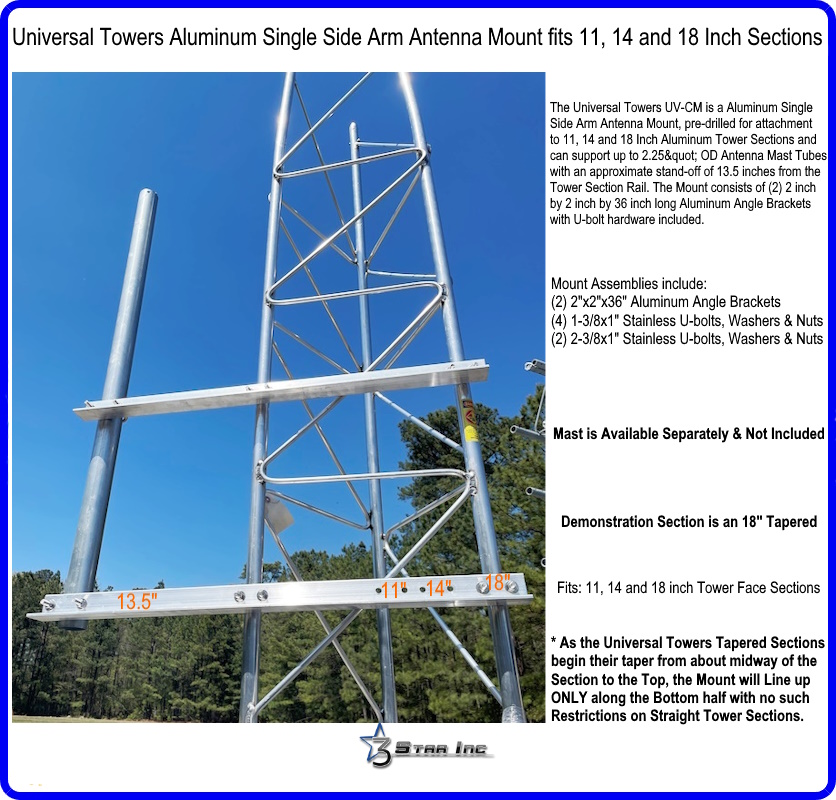

The Universal Towers UV-CM is a Aluminum Single Side Arm Antenna Mount, pre-drilled for attachment to 11, 14 and 18 Inch Aluminum Tower Sections and can support up to 2.25" OD Antenna Mast Tubes with an approximate stand-off of 13.5 inches from the Tower Section Rail. The Mount consists of (2) 2 inch by 2 inch by 36 inch long Aluminum Angle Brackets with U-bolt hardware included, Mast Available Separately
As the Universal Towers Tapered Sections begin their taper from about midway of the Section to the Top, the Mount will Line up ONLY along the Bottom half with no such Restrictions on Straight Tower Sections.

**This Assembly Includes:**
UV-CM
QUANTITY	PART NUMBER	DESCRIPTION
2	UV-CM	2"x2"x36" Aluminum Angle Brackets
4	UV-CM	1-3/8x1" Stainless U-bolts, Washers and Nuts
2	UV-CM	2-3/8x1" Stainless U-bolts, Washers and Nuts

Universal Towers Accessories

Universal Towers Thrust Bearing

Packages typically include a mast collar for a 2 in. OD mast with a welded bearing mount top plate specially drilled Thrust Bearing Model: 1 5/8" SC 4-B & Model: 2 1/16" SC 4-B, sold separately. Packages with other mast collar sizes and without bearing top plate are available by request. A variety of optional Rotator Plates are also available. Chose yours to fit the top section of the tower package selected; R-11, R-14 or R-18. Each is available un-drilled or pre-drilled for popular rotator models. Universal Towers Aluminum Masts in various lengths and sizes are available.

Please contact us or send us an email to support@starinc.com if you have any questions or need help in determining the best options for your tower needs. Universal Towers also provides Customer Support Services including Engineering and Custom Designs for Specific Applications.

Universal Towers Top Cap Mount Thrust Bearings

Specifically Designed and Pre-drilled to mount on Universal Towers Top Cap Bearing Plates to support up to 2.00" O.D. Mast. Not intended to be mounted onto Rotor Accessory shelves.

Universal Towers Rotor Plate Shelf

For Mounting Antenna Rotor, Beacon Lights and other Attachments. Available with holes and no holes .Holes Drilled to fit Yaesu rotator bolt patterns. The plate is not drilled for nor is it designed for use with a thrust bearing (Reference Top Plate Cap Tower Sections). Field Drilling may be necessary to accommodate the Specific Item.
