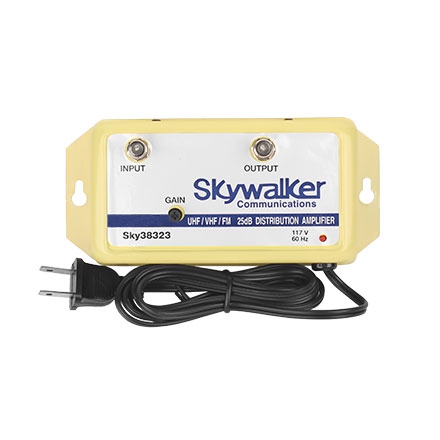

VHF/UHF/FM 25dB Variable Gain TV antenna amplifier

Price$18.95
Manufacturer CodeSKY38323
Qty
AvailabilityUsually ships in 24 Hrs

Highlights
  • Bandwidth: 47-1000MHz
  • Maximum Input: VHF: 40dBmV / UHF: 20dBmV
  • Adjustable Gain: VHF: 25dB UHF: 21dB
  • Noise Figure: VHF: 6dB UHF: 8dB
  • Gain Control: 10dB
  • Power Consumption: approximately 2.4W
  • Power Requirements: 117VAC 60Hz or 220VAC
  • Heavy Metal Housing
  • Power indicator Light

Bulk Quantities Available Here!

Skywalker's Signature Series 25dB Amplifier VHF/UHF/FM with variable gain


Too much gain can be just as bad, as not enough. With this three band amplifier you have the ability to make your gain adjustments just right. With an adjustable gain control, giving you up to 25dB of gain in the VHF, 22dB in the UHF and 18dB in the FM Band!

This Signature Series 25dB Amplifier is powered by 120 volt mains AC that easily plugs into any standard outlet. All cable connections are the standard F type. This amp also features an on/off light to take the guess work out of it's current operational status. That's not all, it's tough on noise and interference because of its heavy metal housing and solid construction.


Bandwidth47-1000MHz
Maximum InputVHF 40dB MV / UHF 20dB MV
GainVHF 25dB / UHF 21dB
Gain
54-300Mhz25dB
300-806Mhz22dB
900Mhz18dB
Noise FigureVHF 6dB / UHF 8dB
Gain Control10dB
Power Consumptionapproximately 2.4 watts
Power Requirements117VAC 60Hz or 220VAC
Main Housing Dimensions5.5in L x 3.25in W x 1.5in H
End Mount Tab to End Mount Tab6.75in
Height from bottom of housing to top of "F" connectors2in







NoteIf you are adding a couple HD Ready TV sets to your TV Antenna Hook-up, this amp will will work fine to offset any loss that is encountered when adding a splitter to feed the additional Outlets. In addition, it comes with an adjustable Gain control, so you can find that sweet spot. Then when you add more loss to the system you have some gain for future additions and a signal Splitter, or balance the amplifier out to feed another amp at the other end of a cable segment to extend your systems reach to another building. It is Forward only (54-1000 MHz), which matches the Bandwidth of any TV Antenna System, however it will not pass any return signals from internet cable modems or Pay Per View Converter Boxes.
Check Your Picture quality where the Cable TV feed enters your Home, if it's good there, you can replace connectors, cable and Splitter to bring your installation up to the newest specifications. If you are feeding numerous TV sets or long Distances, use this Amplifier before the Splitter Or long cable run to maintain Signal Quality.
